Primitive Description and Usage

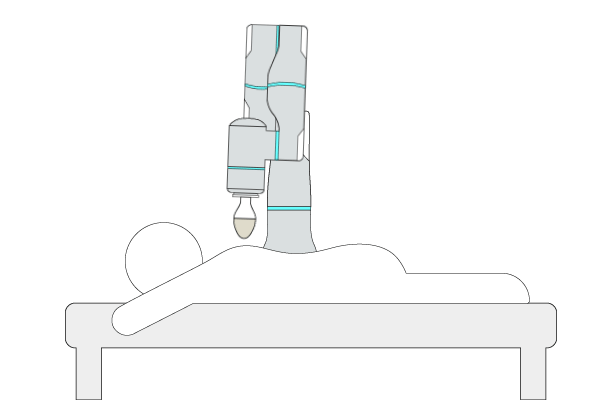

  • Description: This primitive uses hybrid motion/force control to move the robot TCP linearly between waypoints in motion control directions and to exert force in force control directions. Safety mechanisms such as maximum contact force and maximum velocity along force control directions can be configured to protect the human body from injury when the robot comes into contact with it.

  • Example Usage: Use this primitive to control the robot to perform a massage on the human body.

Primitive Input Parameters

Input Parameter

Description

Type

Unit

Default Value & Range

target*

Target TCP pose

COORD

m-deg

[traj_start* world*]

targetWrench*

Force and torque applied on target TCP pose

VEC_6d

N

0.0 0.0 -5.0 0.0 0.0 0.0

waypoint

Waypoint pose

ARRAY_COORD

m-deg

[traj_start* traj_goal* traj_prev* world*]

wrench

Force and torque applied on the waypoint in the force control coordinate system

ARRAY_VEC_6d

N

vel

TCP linear velocity

DOUBLE

m/s

0.25 [0.001 2.2]

acc

TCP linear acceleration

DOUBLE

m/s^2

1.5 [0.1 3.0]

zoneRadius

Blending zone radius while TCP approximates the waypoints

TYPE

mm

Z50 [ZFine Z1 Z5 Z10 Z15 Z20 Z30 Z40 Z50 Z60 Z80 Z100 Z150 Z200 ZSpline]

targetTolerLevel

Tolerance level to determine if the robot has reached the target. 1 means to check with the smallest tolerance, 0 means no tolerance check.

INT

none

0 [0 10]

forceCoord

Reference coordinate system for force control direction

COORD

m-deg

0 0 0 0 0 0 TCP ONLINE [world* tcp_start* tcp*]

forceAxis*

Activated axes of force control coordinate to apply force or torque

VEC_6i

none

0 0 1 0 0 0 [0 0 0 0 0 0 1 1 1 1 1 1]

jerk

TCP linear jerk

DOUBLE

m/s^3

200.0 [50.0 500.0]

angVel

TCP angular velocity

DOUBLE

deg/s

150.0 [10.0 500.0]

enableFixRefJntPos

Flag to indicate if fixed reference joint position is enabled. If this parameter is set to TRUE, the primitive will use the value of parameter [refJntPos] as the fixed joint reference position instead of the reference joint position of each waypoint during execution.

BOOL

none

0 [0 / 1]

refJntPos

Reference target joint positions. When the robot moves in Cartesian space, each joint will move as close as possible toward the reference position.

JPOS

deg

0.0 -40.0 0.0 90.0 0.0 40.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0

configOptObj

Weights of three configuration optimization objectives during robot motion, which respectively are to make the robot easier to translate in Cartesian space, easier to rotate in Cartesian space, and closer to the reference joint position.

VEC_3d

none

0.0 0.0 0.5 [0.0 0.0 0.1 1.0 1.0 1.0]

stiffScale

Robot stiffness scale during motion. The lower the stiffness scale, the more compliant the motion.

VEC_6d

none

1.0 1.0 1.0 1.0 1.0 1.0 [0.01 0.01 0.01 0.01 0.01 0.01 1.0 1.0 1.0 1.0 1.0 1.0]

enableMaxWrench

Flag to indicate if maximum contact wrench is enabled in each Cartesian direction: X, Y, Z, Rx, Ry, Rz

VEC_6i

none

0 0 0 0 0 0 [0 0 0 0 0 0 1 1 1 1 1 1]

maxContactWrench

Maximum contact wrench allowed for static collision along Fx, Fy, Fz, Mx, My, Mz

VEC_6d

N

150.0 150.0 150.0 40.0 40.0 40.0 [5.0 5.0 5.0 1.0 1.0 1.0 150.0 150.0 150.0 40.0 40.0 40.0]

enableEntryPoint

Use the first waypoint as the entry point. The robot moves from free space to the first waypoint along the force control axis, then executes the hybrid position/force controlling motion.

BOOL

none

0 [0 / 1]

maxWrenchPause

The robot pauses when it reaches the maximum contact wrench and resumes executing subsequent trajectories after the maximum contact wrench is removed.

BOOL

none

0 [0 / 1]

motionForceDecouple

Flag to indicate if motion control and force control are decoupled. When the tool is long and the friction is large, it is recommended to enable this parameter so that the tool can make more stable contact with the human body.

BOOL

none

0 [0 / 1]

maxVelForceDir

Maximum movement velocity along force control direction

VEC_3d

m/s

2.0 2.0 2.0 [0.005 0.005 0.005 2.0 2.0 2.0]

wrenchFilterCutoff

Cutoff frequency of command wrench filter. The lower this frequency, the smoother the change in command wrench.

DOUBLE

Hz

1.0 [0.1 10.0]

lineSpace

Wavelength of the overlaid sine wave or helix wave trajectory

DOUBLE

m

0.005 [0.005 1.0]

amplitude

Amplitude of the overlaid sine wave or helix wave trajectory

DOUBLE

m

0.0 [-1.0 1.0]

pitch

Pitch of the helix wave trajectory

DOUBLE

m

0.0 [-1.0 1.0]

*Parameters marked with an asterisk must be assigned a value prior to executing the primitive.

*Coordinate System Definition

Coordinate

Definition

Value Format

world

WORLD coordinate system, which is a fixed Cartesian coordinate system located at the center of the robot base

X Y Z Rx Ry Rz WORLD WORLD_ORIGIN

work

WORK coordinate system, which defines the position of the workpiece relative to the WORLD coordinate system

X Y Z Rx Ry Rz WORK WorkCoordName

tcp

TCP coordinate system, which is located at the Tool Center Point relative to the center of robot flange

X Y Z Rx Ry Rz TCP ONLINE

tcp_start

The fixed coordinate system which is located at the initial TCP pose of the primitive

X Y Z Rx Ry Rz TCP START

traj_start

The offset of a waypoint relative to the initial TCP pose in the TCP coordinate system

X Y Z Rx Ry Rz TRAJ START

traj_goal

The offset of a waypoint relative to the target TCP pose in the TCP coordinate system

X Y Z Rx Ry Rz TRAJ GOAL

traj_prev

The offset of a waypoint relative to the previous waypoint in the TCP coordinate system

X Y Z Rx Ry Rz TRAJ PREVIOUSWAYPOINT

  • You can use the simplified value format above to describe a waypoint, while the complete description of a Cartesian waypoint is: X Y Z Rx Ry Rz ReferenceCoordinate A1 A2 A3 A4 A5 A6 A7 E1 E2 E3 E4 E5 E6. A1 to A7 are the preferred joint positions of the robot; X1 to X6 are the target positions of external axes. The additional data can be added if necessary.

  • Add “:” to separate the waypoints. For example: 0.2 0 0.3 0 180 0 WORLD WORLD_ORIGIN : 0.2 0.1 0.3 0 180 0 WORLD WORLD_ORIGIN.

*Robot Joint Position Description

  • The complete description of a joint waypoint (JPOS) is: A1 A2 A3 A4 A5 A6 A7 E1 E2 E3 E4 E5 E6. A1 to A7 are the joint positions of the robot; X1 to X6 are the positions of external axes. You can only set the robot joint positions if external axes do not exist. For example: {jnt_def_1}.

  • Add “:” to separate the waypoints. For example: {jnt_def_2}.

Primitive State Parameters

State Parameter

Description

Type

Unit

terminated

The termination flag of the primitive. It is set to true if the primitive is terminated.

BOOL

none

timePeriod

The time spent on running the current primitive.

DOUBLE

s

reachedTarget

Flag to indicate if the robot has reached the target

BOOL

none

waypointIndex

Index of the current waypoint the robot just passed. 0 means the initial pose.

INT

none

Primitive Output Parameters

Output Parameter

Description

Type

Unit

tcpPoseOut

The TCP pose when the primitive is terminated. It is represented in the world coordinate system.

COORD

m-deg

Default Transition Condition

State Parameter

Condition

Value

reachedTarget

=

1
